Type A Power Plug & Socket
Type A plugs have two flat parallel pins. This ungrounded plug is commonly used in North America, Central America, and Japan. It's one of the oldest plug designs still in use.
Standard: NEMA 1-15
Pin Configuration: Two flat parallel pins (15.9mm apart, 15.9mm long, 6.3mm wide)
Usage: Type A outlets are being phased out in favor of the grounded Type B in many countries. Always check if your devices require grounding.

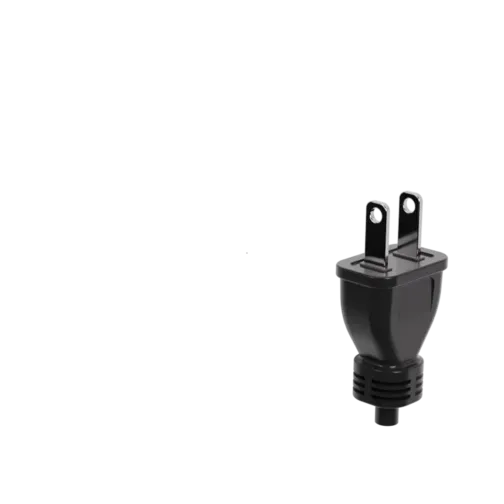

Plug
Type A Power Plug
Plug & Socket
Complete Type A Set

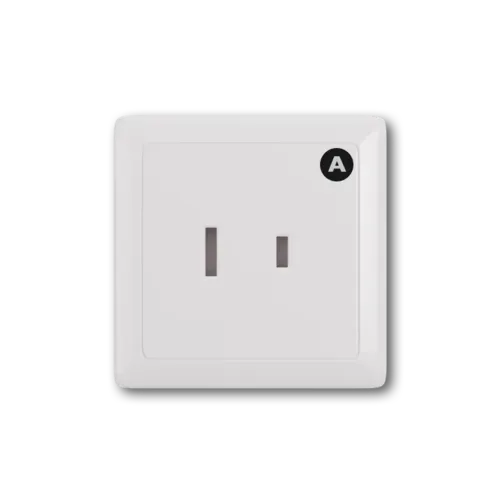

Socket
Type A Wall Outlet
Countries Using Type A Plugs
Africa (1)
North America (5)
Oceania (5)
Caribbean (21)
Middle East (1)
Central America (7)
About Type A Plugs and Sockets
Type A plugs have two flat parallel pins. This ungrounded plug is commonly used in North America, Central America, and Japan. It's one of the oldest plug designs still in use.
Technical Specifications
- Standard Name: NEMA 1-15
- Number of Pins: 2
- Grounding: No
- Amperage Rating: 15A
- Voltage Range: 100-127V
- Countries Using: 57
Where Type A is Used
Type A plugs are primarily used in North and Central America, Japan. This plug type is found in 57 countries and territories. Check the country list below for the complete list of locations using Type A outlets.
Important Usage Notes
Type A outlets are being phased out in favor of the grounded Type B in many countries. Always check if your devices require grounding.
Travel Tips
If you're traveling to a country that uses Type A outlets and your devices use a different plug type, you'll need a travel adapter. Make sure to also check the voltage compatibility - most modern electronics are dual-voltage (100-240V), but appliances like hair dryers may need a converter.
