Type G Power Plug & Socket
Type G plugs have three rectangular pins in a triangular pattern. Known for its built-in fuse, it's considered one of the safest plug designs.
Standard: BS 1363
Pin Configuration: Three rectangular pins in triangular pattern (live/neutral 6.35x3.18mm, earth 3.18x7.92mm)
Usage: The built-in fuse (typically 3A or 13A) provides additional protection. Adapters for Type G sockets must be high quality to handle the fuse requirement.
Plug
Type G Power Plug
Plug & Socket
Complete Type G Set
Socket
Type G Wall Outlet

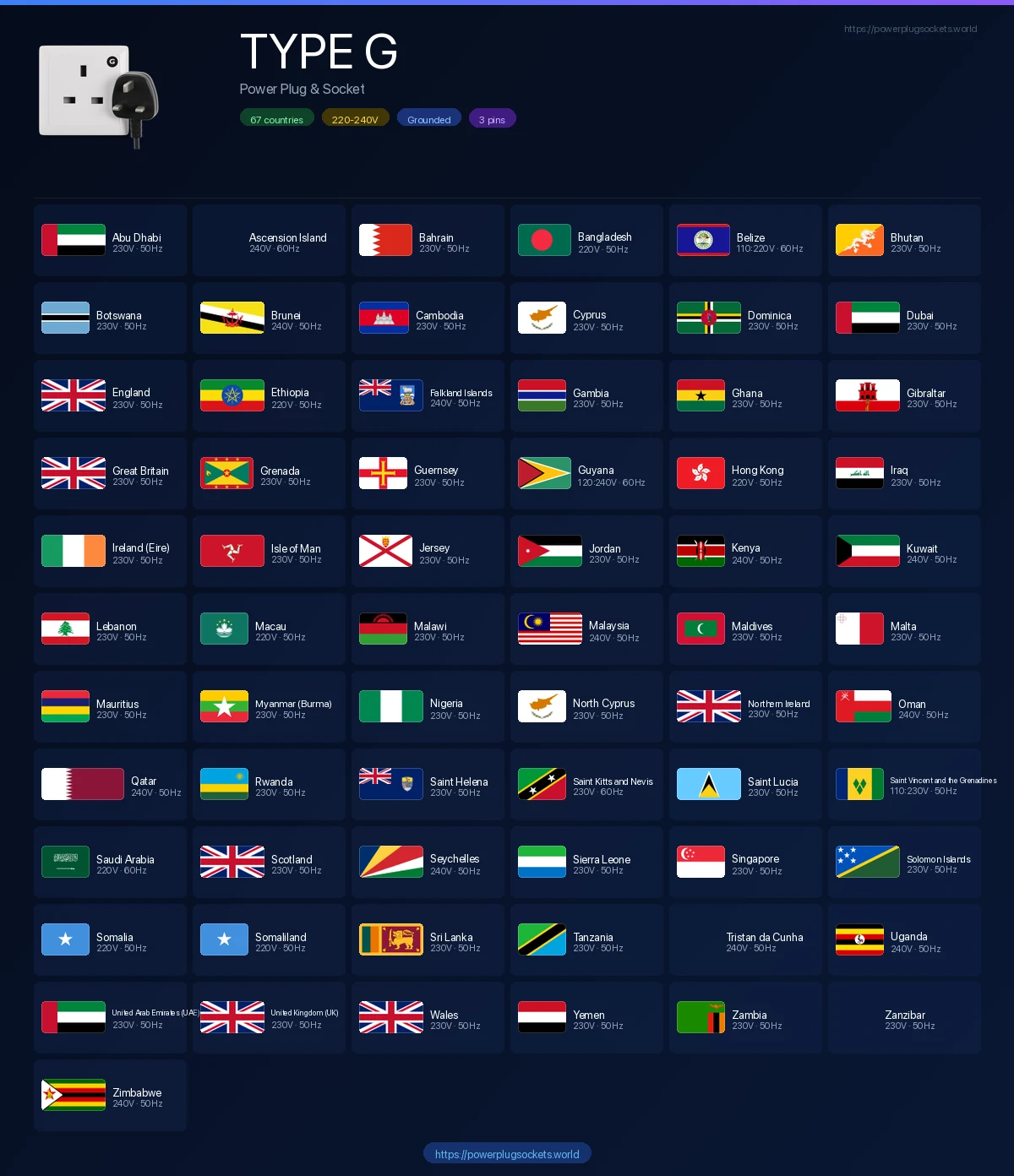

Countries Using Type G Plugs
Other (1)
Africa (17)
Asia (11)
Europe (10)
South America (2)
Oceania (1)
Caribbean (6)
Middle East (14)
Central America (1)
About Type G Plugs and Sockets
Type G plugs have three rectangular pins in a triangular pattern. Known for its built-in fuse, it's considered one of the safest plug designs.
Technical Specifications
- Standard Name: BS 1363
- Number of Pins: 3
- Grounding: Yes
- Amperage Rating: 13A
- Voltage Range: 220-240V
- Countries Using: 63
Where Type G is Used
Type G plugs are primarily used in United Kingdom, Ireland, Malta, Malaysia, Singapore. This plug type is found in 63 countries and territories. Check the country list below for the complete list of locations using Type G outlets.
Important Usage Notes
The built-in fuse (typically 3A or 13A) provides additional protection. Adapters for Type G sockets must be high quality to handle the fuse requirement.
Travel Tips
If you're traveling to a country that uses Type G outlets and your devices use a different plug type, you'll need a travel adapter. Make sure to also check the voltage compatibility - most modern electronics are dual-voltage (100-240V), but appliances like hair dryers may need a converter.
