Type I Power Plug & Socket
Type I plugs have two angled flat pins in a V-shape, plus a grounding pin. The angled pins distinguish it from other flat-pin designs.
Standard: AS/NZS 3112
Pin Configuration: Two angled flat pins (8mm long, 6.5mm wide, 30 degree angle) plus vertical grounding pin
Usage: Type I is used in several countries across different continents. Chinese outlets often accept both Type I and Type A plugs.

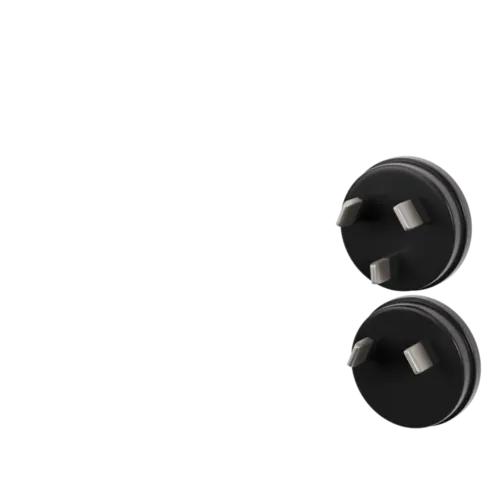

Plug
Type I Power Plug
Plug & Socket
Complete Type I Set

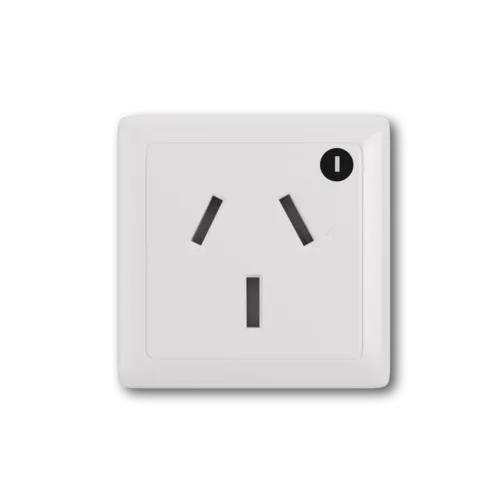

Socket
Type I Wall Outlet
Countries Using Type I Plugs
Other (2)
Africa (1)
Asia (3)
Europe (1)
South America (1)
About Type I Plugs and Sockets
Type I plugs have two angled flat pins in a V-shape, plus a grounding pin. The angled pins distinguish it from other flat-pin designs.
Technical Specifications
- Standard Name: AS/NZS 3112
- Number of Pins: 3
- Grounding: Yes
- Amperage Rating: 10A
- Voltage Range: 220-240V
- Countries Using: 23
Where Type I is Used
Type I plugs are primarily used in Australia, New Zealand, China, Argentina. This plug type is found in 23 countries and territories. Check the country list below for the complete list of locations using Type I outlets.
Important Usage Notes
Type I is used in several countries across different continents. Chinese outlets often accept both Type I and Type A plugs.
Travel Tips
If you're traveling to a country that uses Type I outlets and your devices use a different plug type, you'll need a travel adapter. Make sure to also check the voltage compatibility - most modern electronics are dual-voltage (100-240V), but appliances like hair dryers may need a converter.
