Type N Power Plug & Socket

Type N plugs have three round pins and come in 10A and 20A versions. Brazil's standard plug type since 2007.

100-240V 10A/20A 3 Pins Grounded 2 Countries

Standard: IEC 60906-1

Pin Configuration: Three round pins in triangular pattern (4mm pins for 10A, 4.8mm pins for 20A)

Usage: Type N sockets accept Type C (Europlug) devices. South Africa adopted Type N alongside Type M.

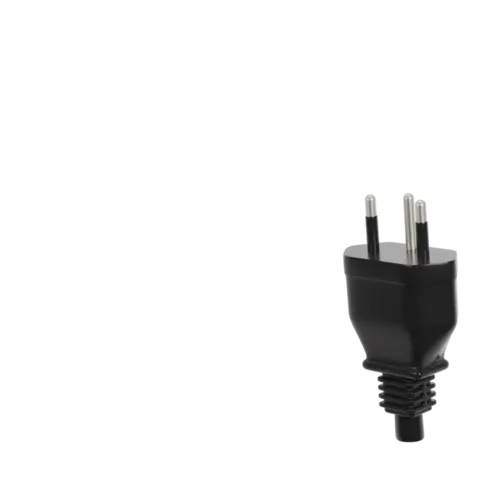

Type N electrical power plug
Click to enlarge

Plug

Type N Power Plug

Type N power plug and wall outlet electrical socket
Click to enlarge

Plug & Socket

Complete Type N Set

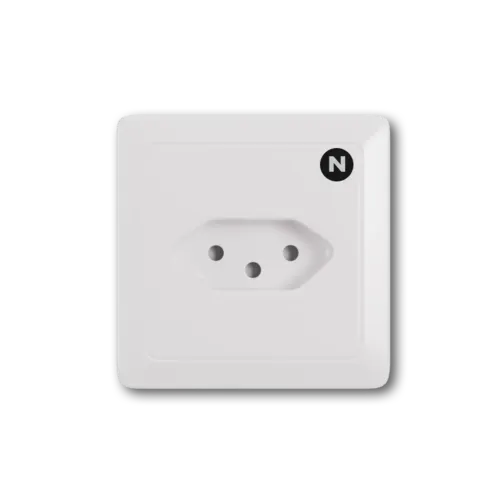

Type N wall outlet electrical socket
Click to enlarge

Socket

Type N Wall Outlet

Countries Using Type N Plugs

Africa (1)

South Africa South Africa

South America (1)

Brazil Brazil

About Type N Plugs and Sockets

Type N plugs have three round pins and come in 10A and 20A versions. Brazil's standard plug type since 2007.

Technical Specifications

  • Standard Name: NBR 14136
  • Number of Pins: 3
  • Grounding: Yes
  • Amperage Rating: 10A/20A
  • Voltage Range: 100-240V
  • Countries Using: 2

Where Type N is Used

Type N plugs are primarily used in Brazil, South Africa. This plug type is found in 2 countries and territories. Check the country list below for the complete list of locations using Type N outlets.

Important Usage Notes

Type N sockets accept Type C (Europlug) devices. South Africa adopted Type N alongside Type M.

Travel Tips

If you're traveling to a country that uses Type N outlets and your devices use a different plug type, you'll need a travel adapter. Make sure to also check the voltage compatibility - most modern electronics are dual-voltage (100-240V), but appliances like hair dryers may need a converter.
