Type M Power Plug & Socket
Type M plugs have three large round pins in a triangular pattern, larger than Type D. Used for high-power appliances and as the standard in South Africa.
Standard: BS 546 (15A)
Pin Configuration: Three large round pins in triangular pattern (earth 8.7mm diameter, live/neutral 7.1mm diameter)
Usage: Type M is essentially a larger version of Type D. In South Africa, it's the standard for all outlets, not just high-power.

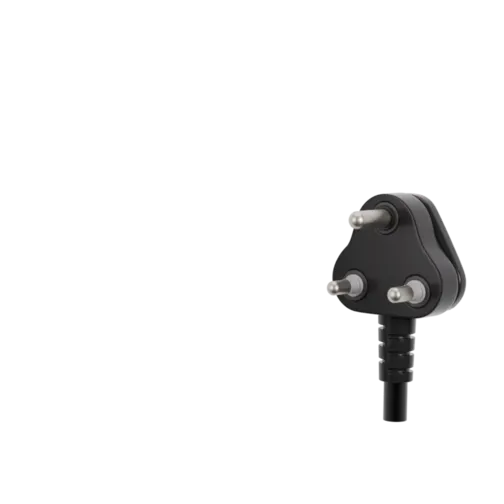

Plug
Type M Power Plug
Plug & Socket
Complete Type M Set

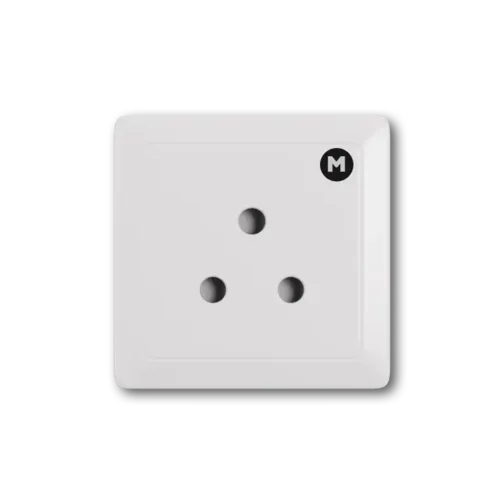

Socket
Type M Wall Outlet
Countries Using Type M Plugs
Africa (5)
About Type M Plugs and Sockets
Type M plugs have three large round pins in a triangular pattern, larger than Type D. Used for high-power appliances and as the standard in South Africa.
Technical Specifications
- Standard Name: BS 546 (15A)
- Number of Pins: 3
- Grounding: Yes
- Amperage Rating: 15A
- Voltage Range: 220-240V
- Countries Using: 7
Where Type M is Used
Type M plugs are primarily used in South Africa, India (for high-power), some African countries. This plug type is found in 7 countries and territories. Check the country list below for the complete list of locations using Type M outlets.
Important Usage Notes
Type M is essentially a larger version of Type D. In South Africa, it's the standard for all outlets, not just high-power.
Travel Tips
If you're traveling to a country that uses Type M outlets and your devices use a different plug type, you'll need a travel adapter. Make sure to also check the voltage compatibility - most modern electronics are dual-voltage (100-240V), but appliances like hair dryers may need a converter.
